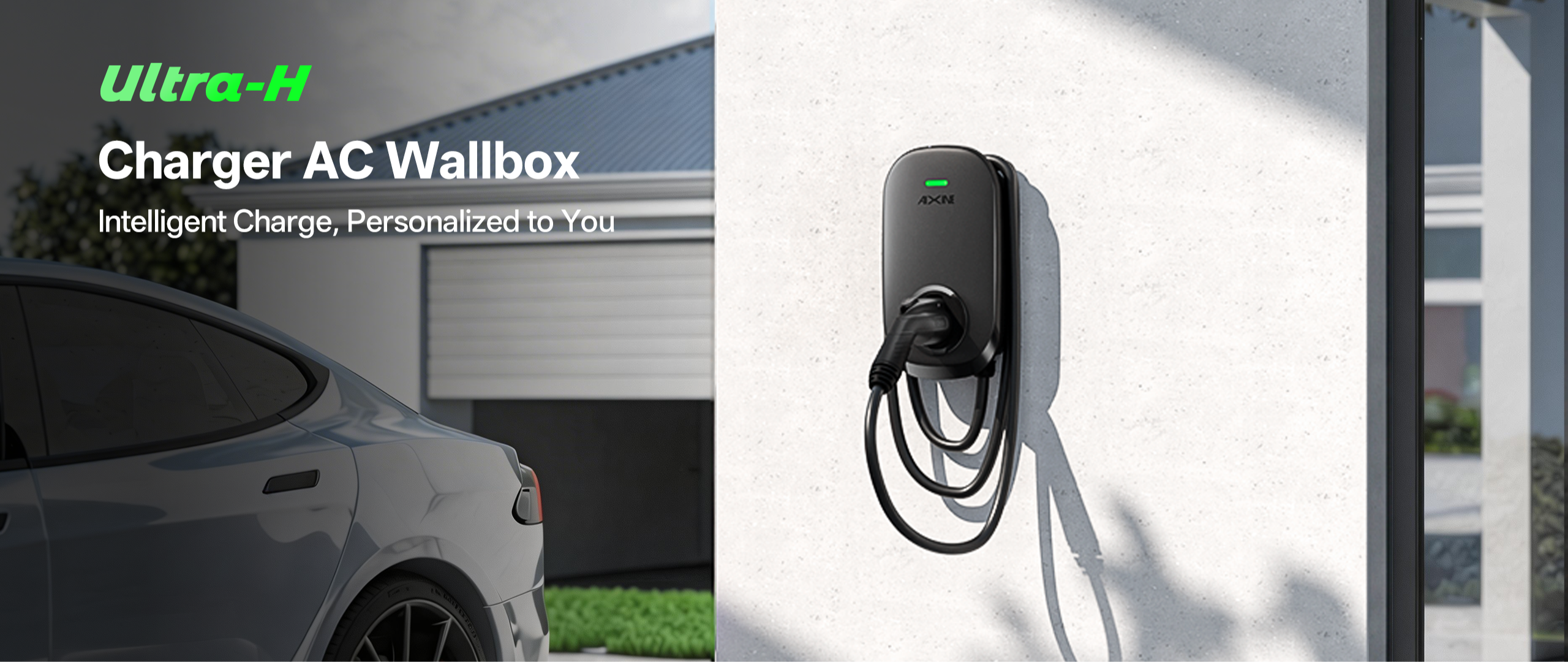

Ultra Charger
Price range: $499.99 through $629.99
Key Features
- cETLus/FCC/Energy Star/cULus Certified
- UL94-V0 Retardant Enclosure Material

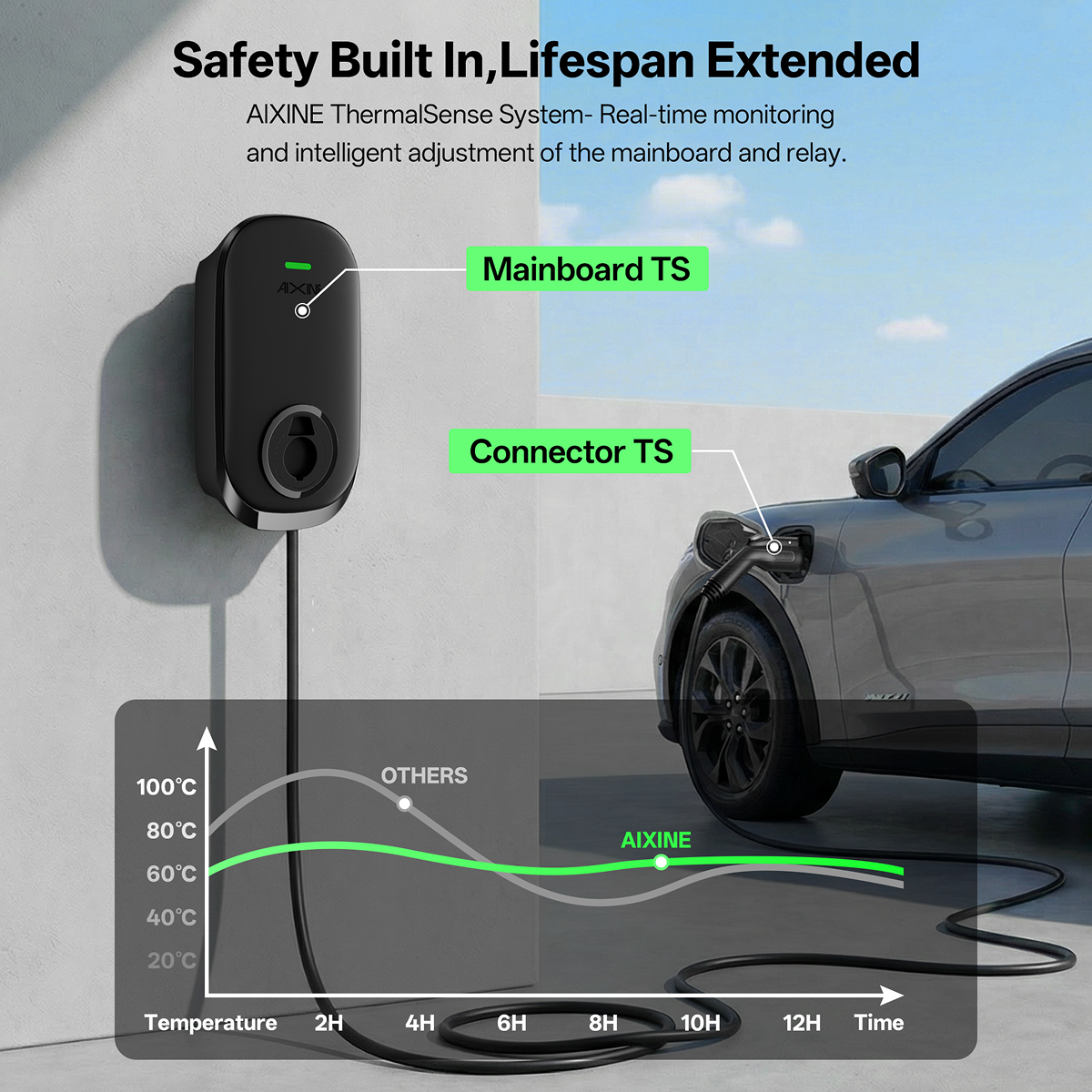

- Real-Time Dual-Thermal Monitoring in the Both Connectors

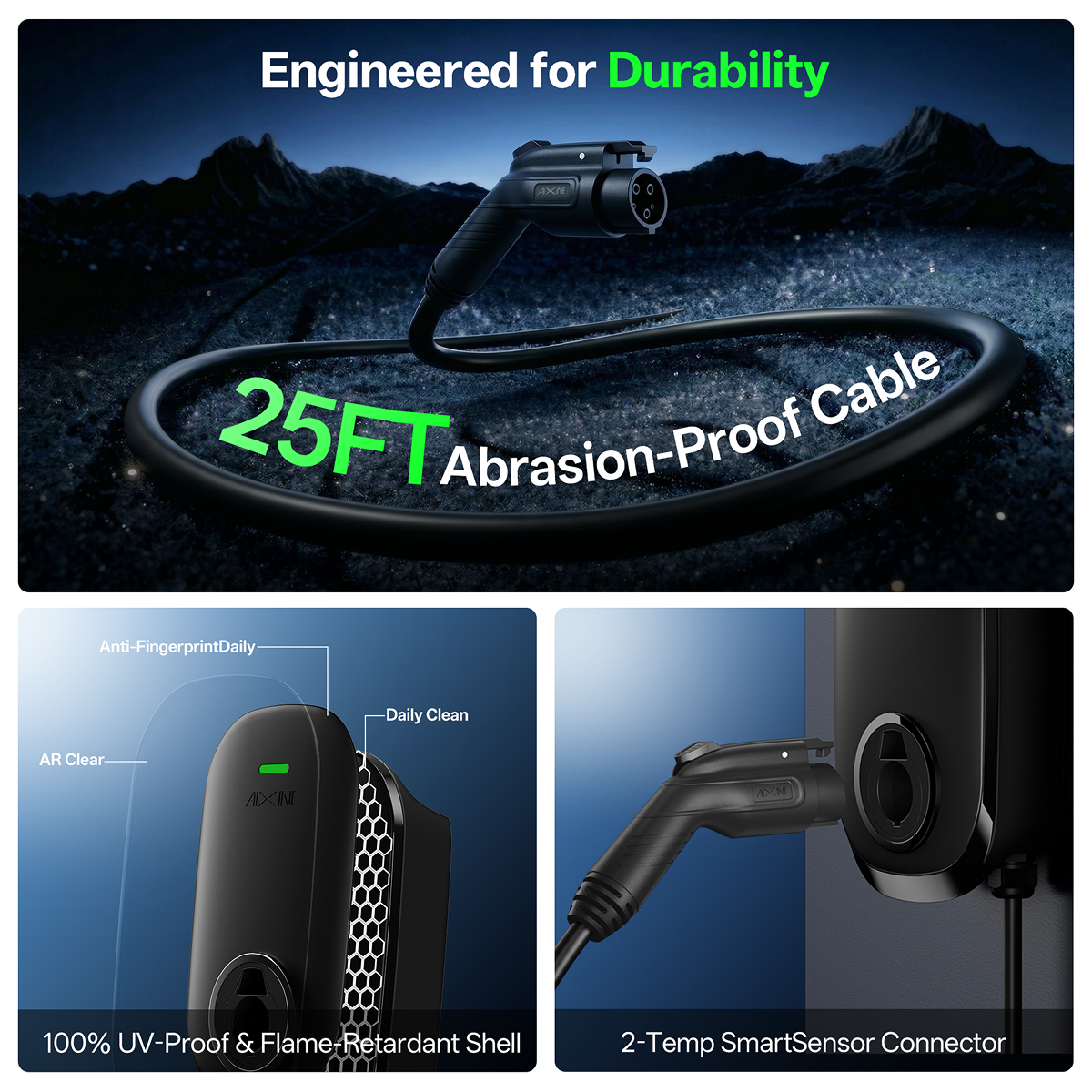

- UV-Resistant Coating
- OTA (Over-The-Air) Updates

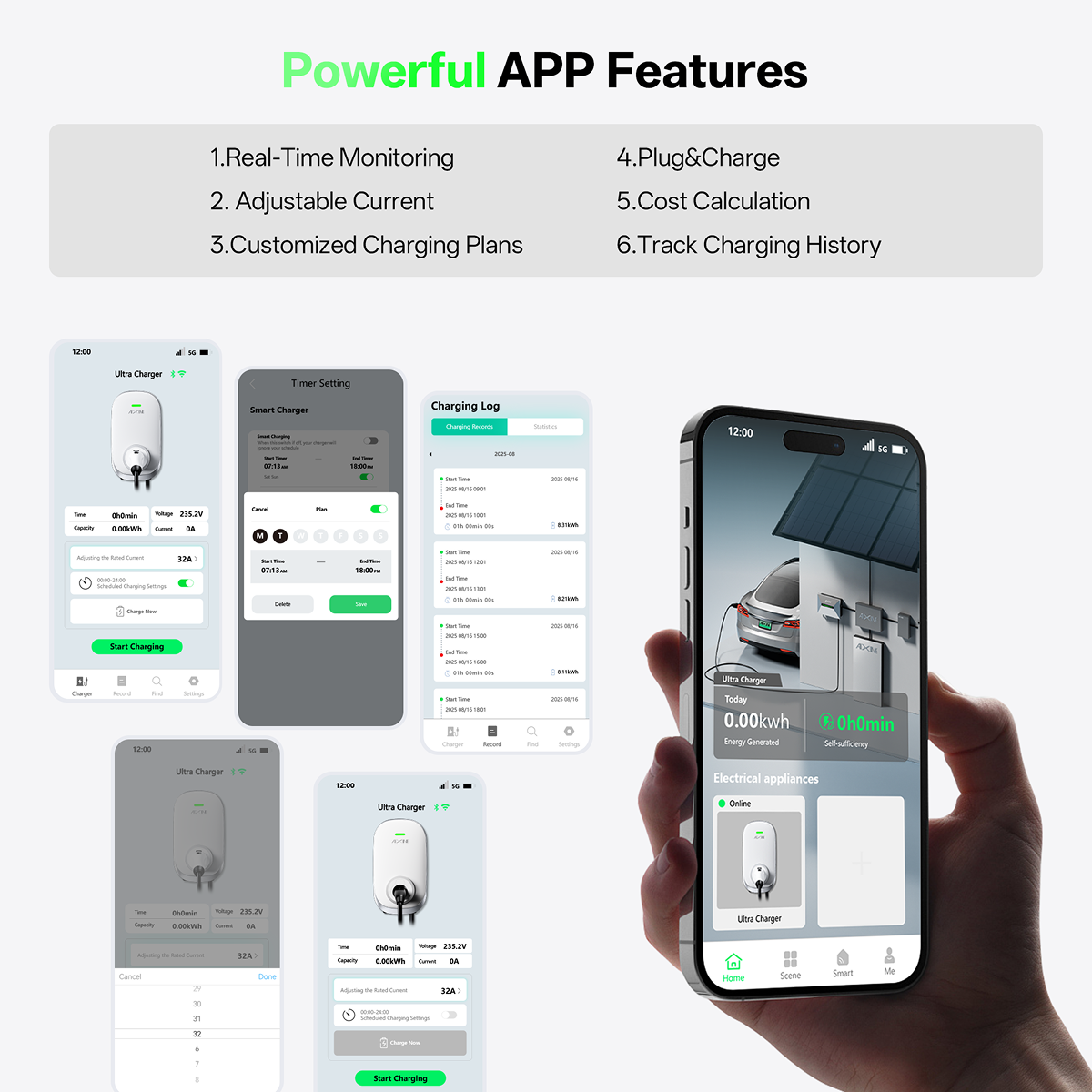

Smart Display for Charging Insights
Products Features & Benefits

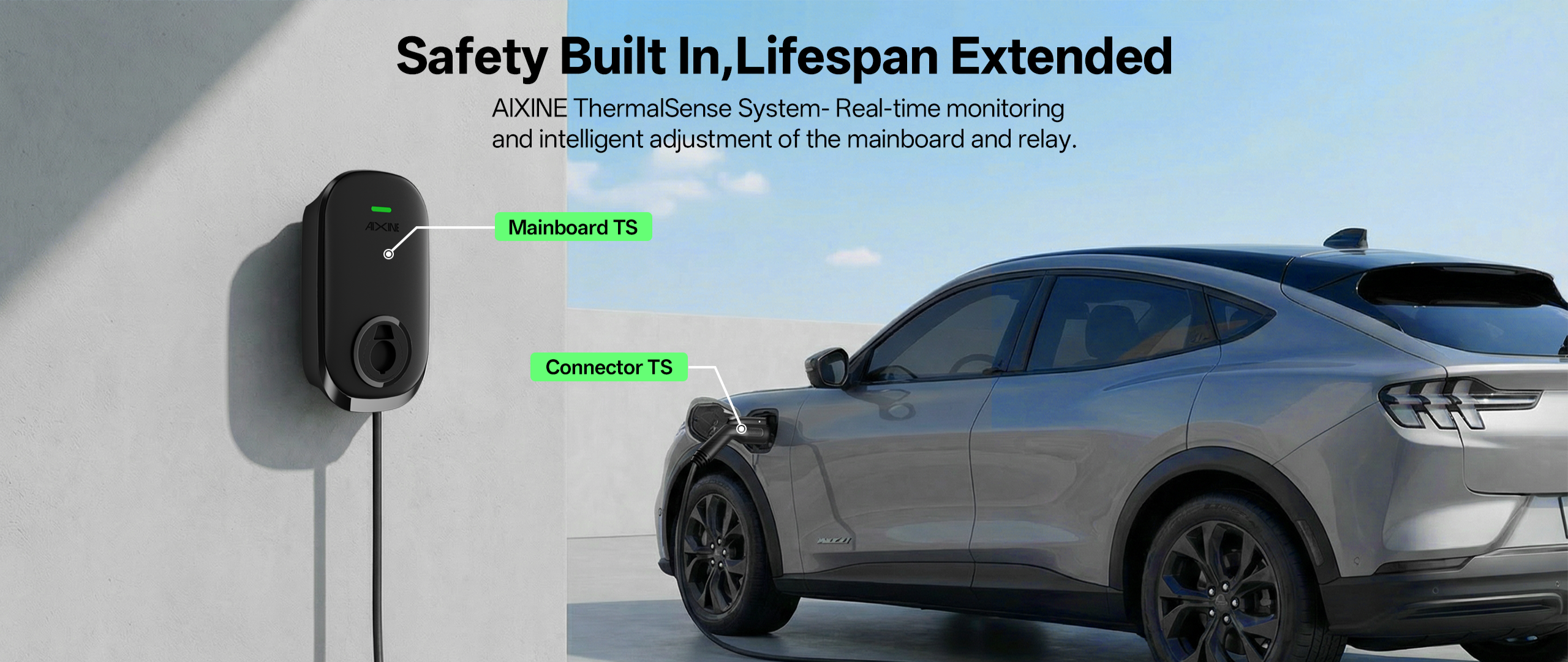

- Safety Built In
- Charge Anywhere

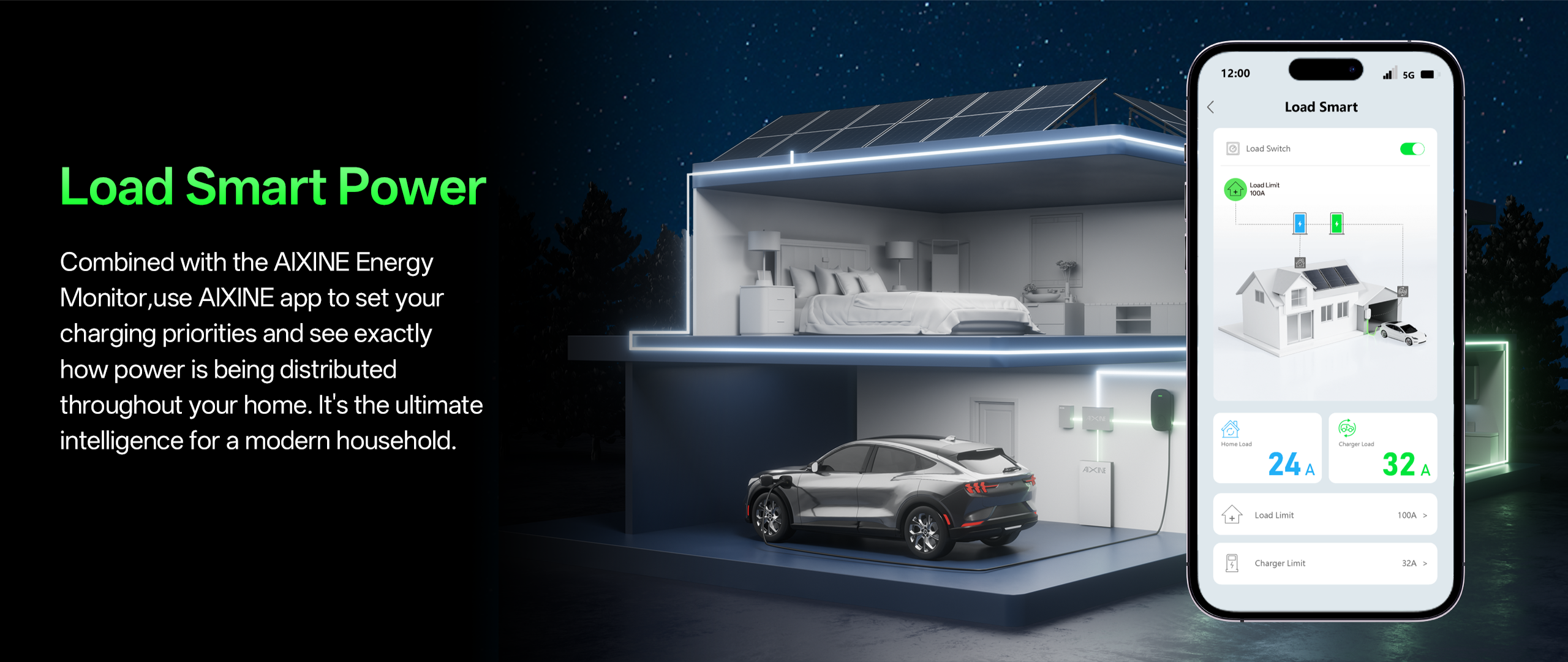

- Load Smart Power
- Custom Plans
- Charge securely
Products Comparison
What’s in the Box

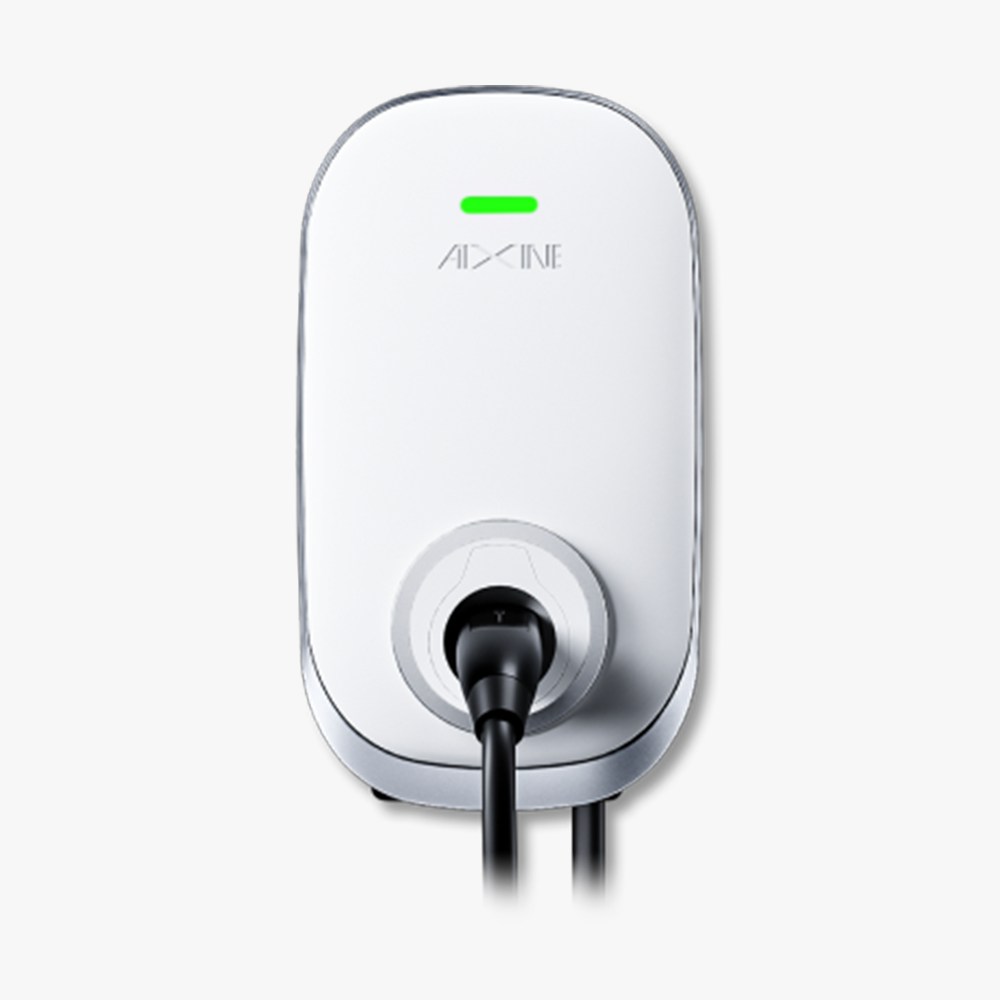

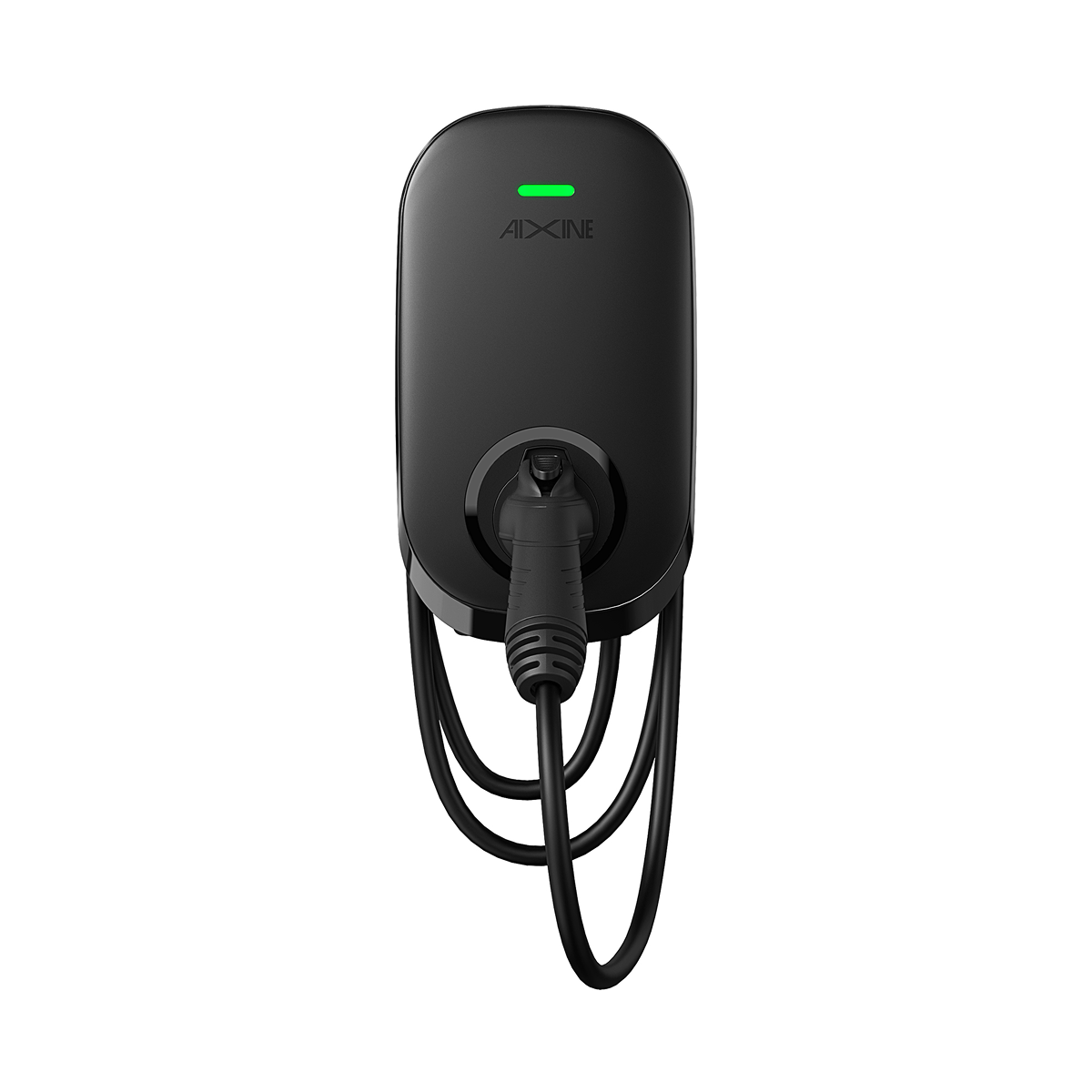

Charging Station
Wall Dock

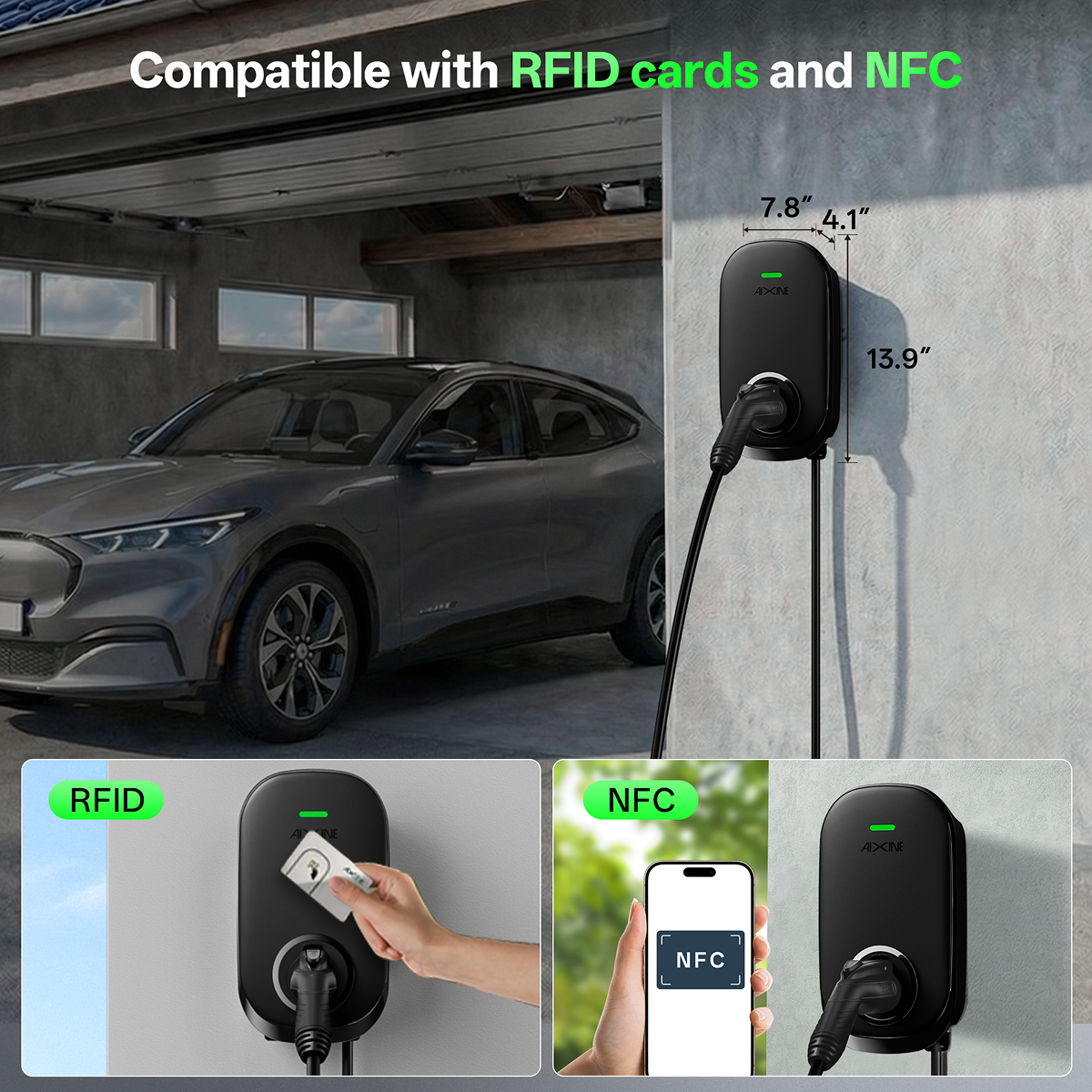

RFID Card

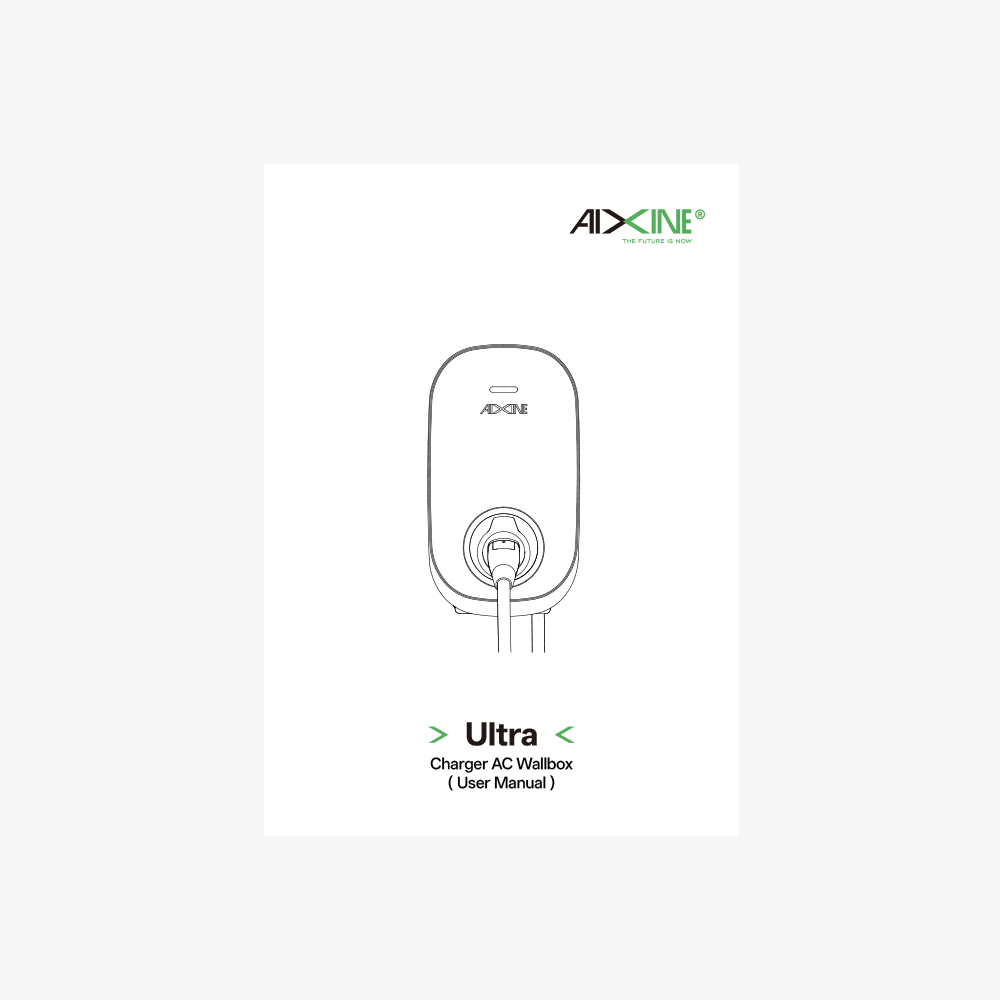

User Manual
Amperage Labels

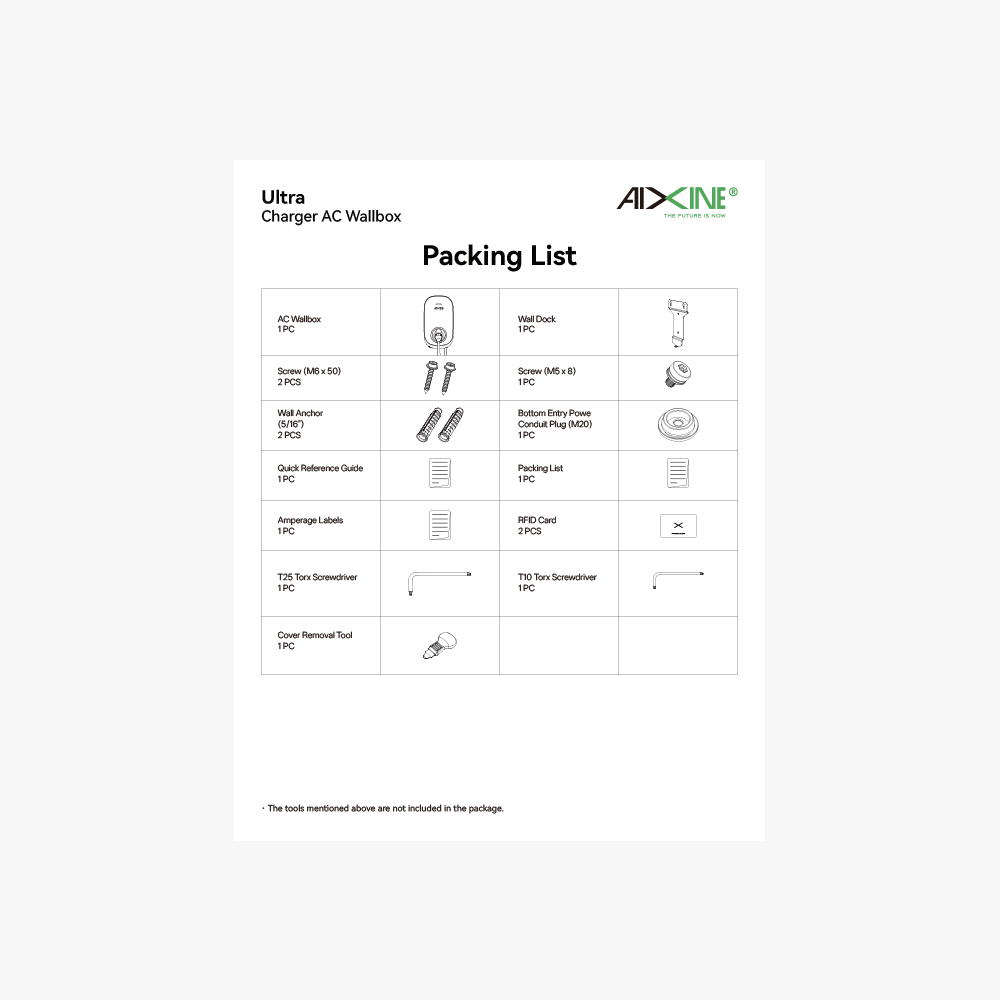

Packing List
Accessories
Specifications
AC Power Output Rating

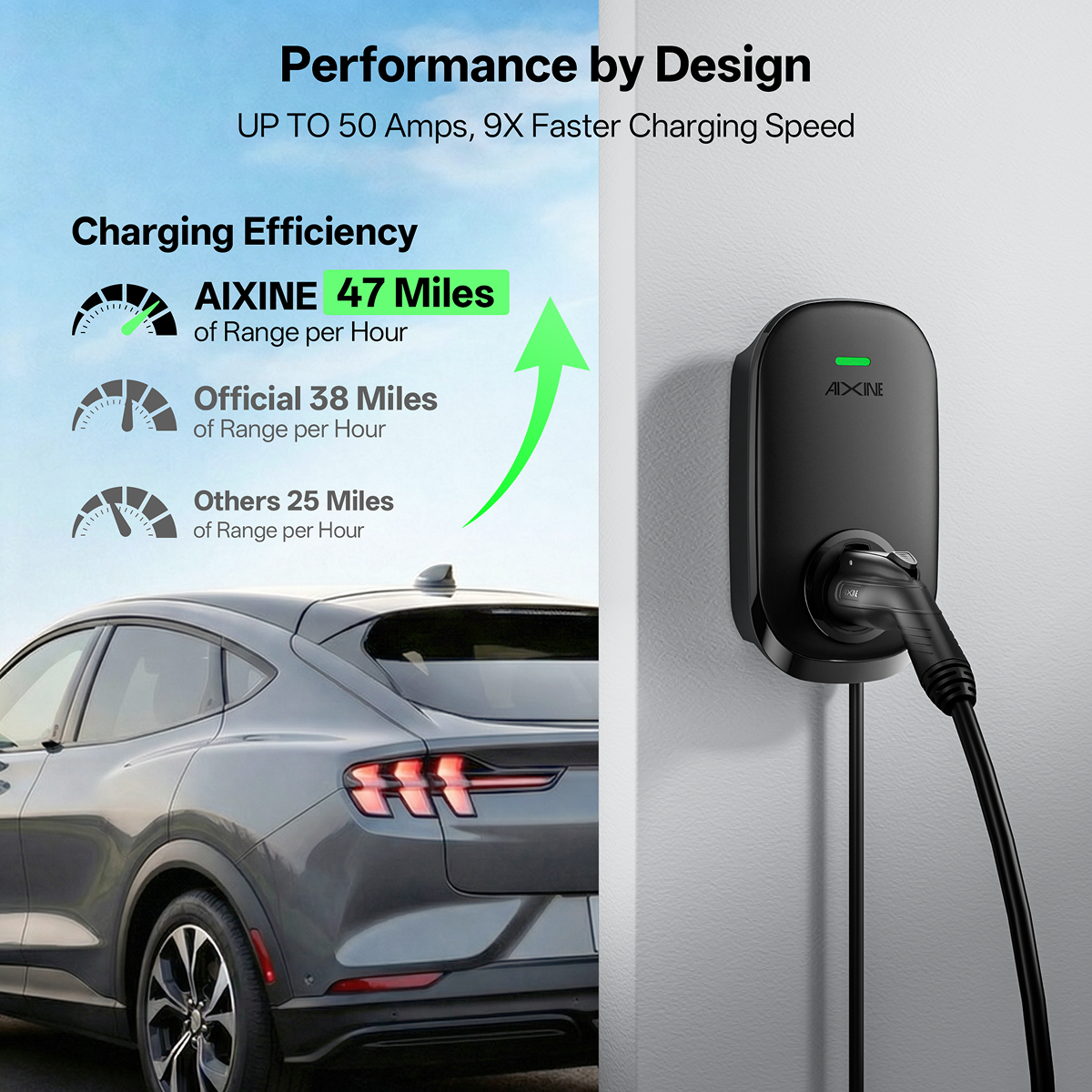

• Maximum 9.6kW (240 VAC @ 40 A model)
• Maximum 12kW (240 VAC @ 50 A model)
• Maximum 19.2kW (240 VAC @ 80 A model)
AC Power Input Rating
208/240 VAC, 60 Hz, single phase @ 40 A,
50 A , 80 A
Circuit Breaker Options (A)
40 A, 50 A, 80 A
(must be sized at 125% of the maximum load,
e.g., 50 A breaker for 40 A output)
Connectivity
• Bluetooth
• Wi-Fi (2.4G, 802.11 b/g/n)
• Ethernet (For commercial use only)
• RS485
Operating Temperature
-40 to 131 °F (-40 to 55 °C)
Storage Temperature
-40 to 185 °F (-40 to 85°C)
Weight
Net Weight: 11.5-16.1 lbs. (5.2-7.3 kg)
Gross Weight: 14.8-19.4 lbs. (6.7-8.8 kg)
Certification
FCC/cETLus/ENERGY STAR
Safety and Compliance
NEC Article 625 and UL 991, UL 2594, UL2231-1,
UL2231-2, UL 1998, CSA C22.1
Input Cord
• NEMA 6-50
• NEMA 14-50
• Hardwired
Model
• UA-US-AC1ON-6 • UA-US-AC10J-6
• UA-US-AC10N-14 • UA-US-AC10J-14
• UA-US-AC12N • UA-US-AC12J
• UA-US-AC20N • UA-US-AC20J
