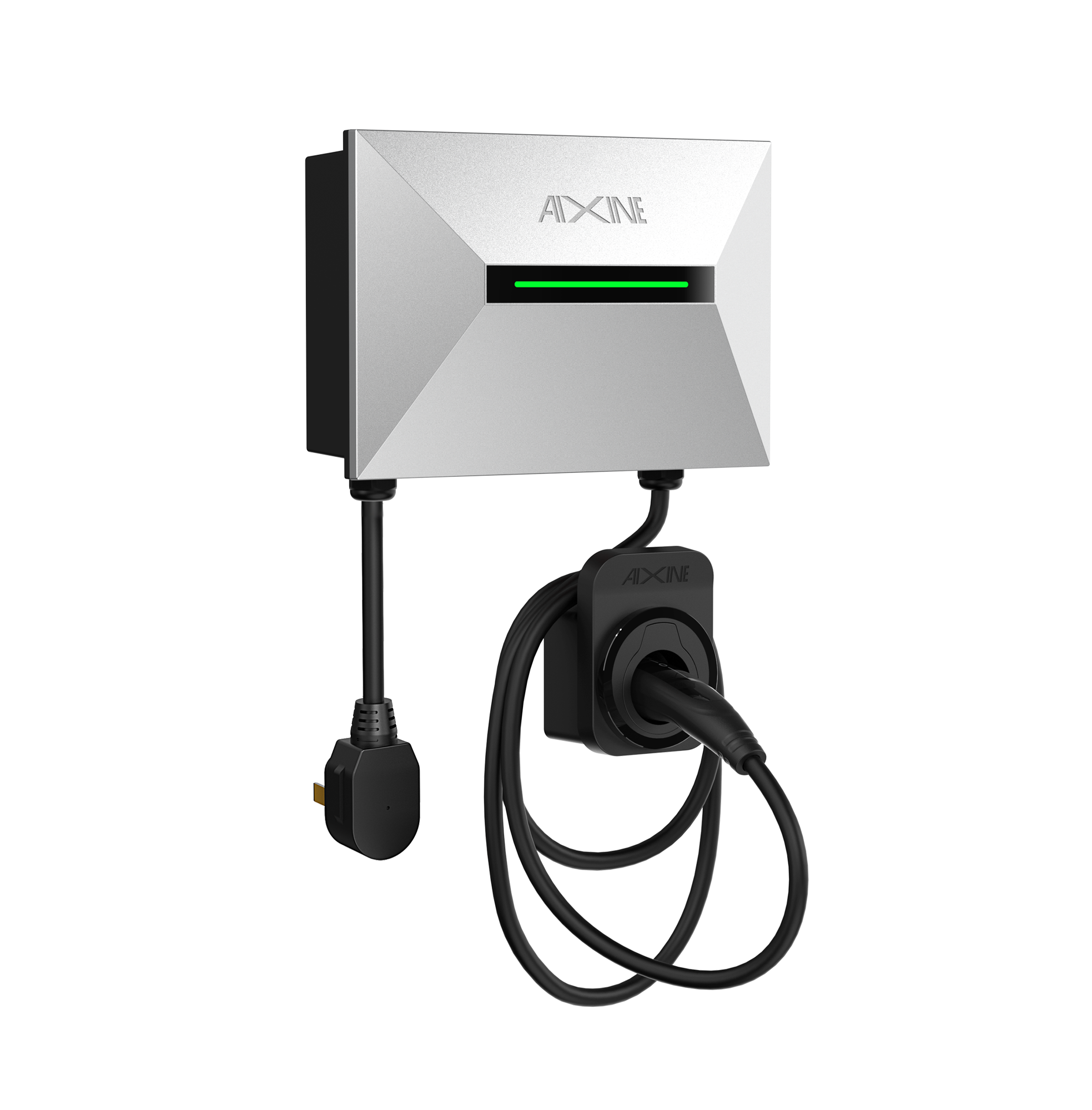

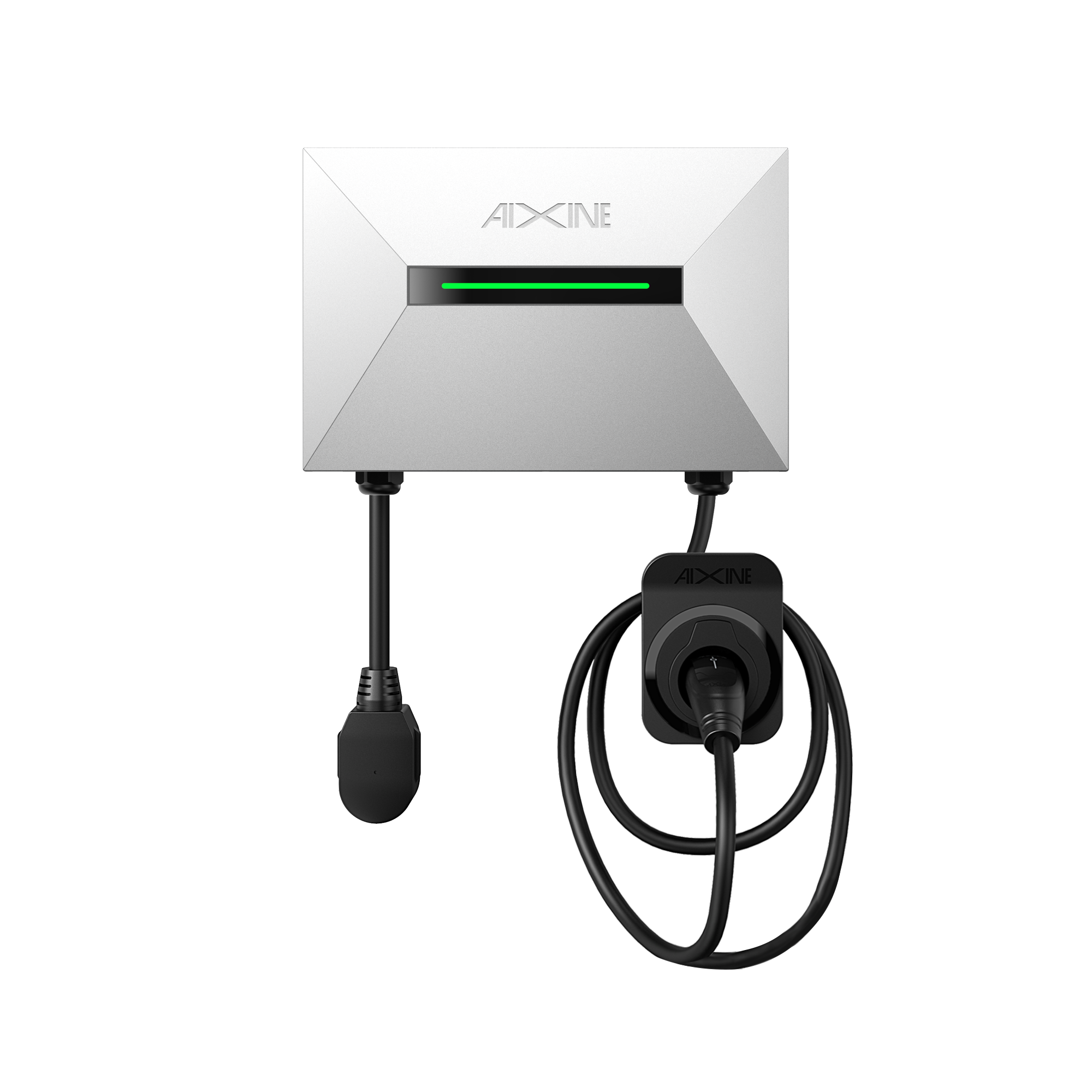

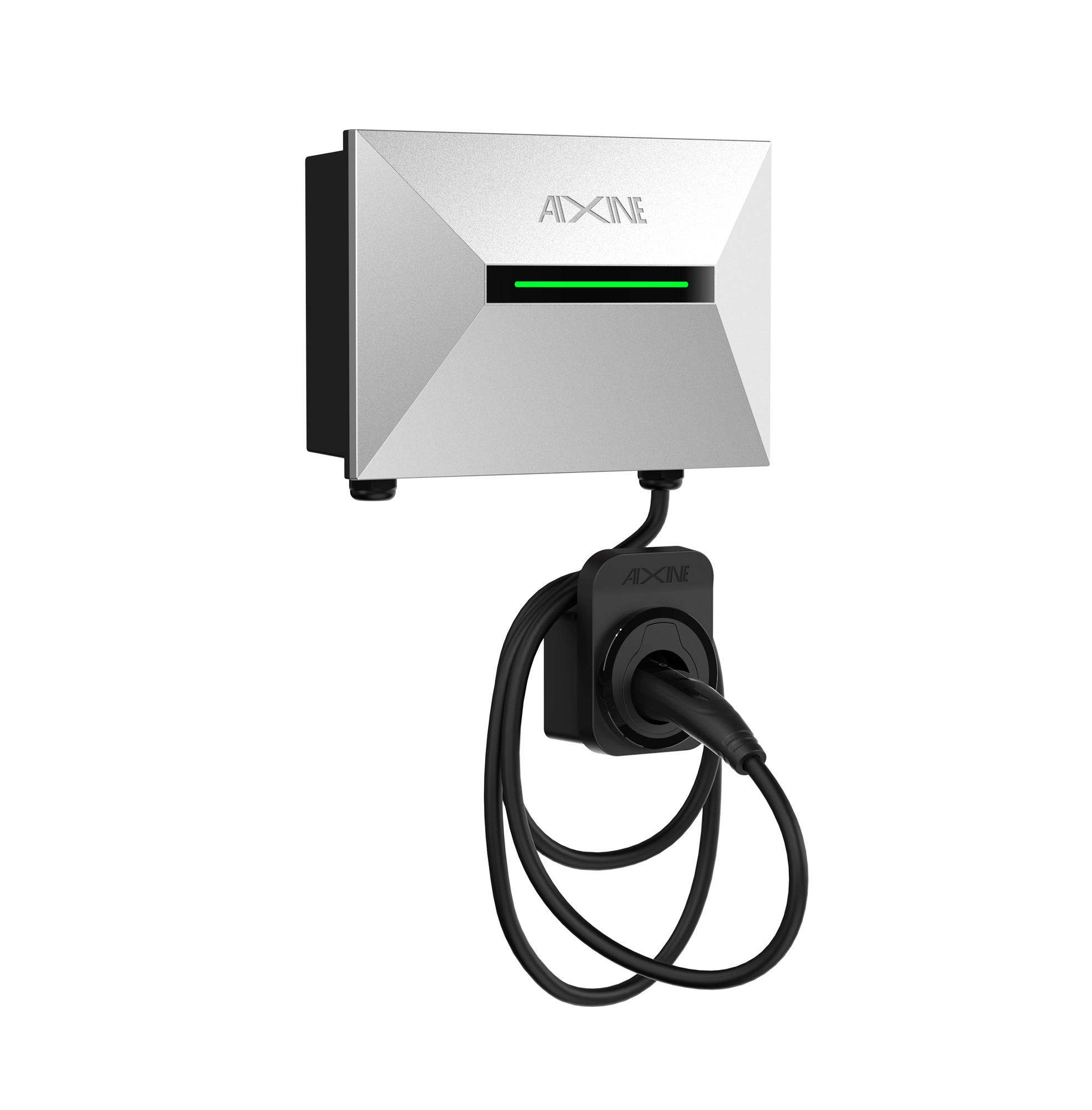

Max Charger
Price range: $0.00 through $1,299.99
Key Features
- cETLus/FCC/Energy Star/cULus Certified
- Dynamic Load Balancing
- Real-Time Energy Analytics
- OTA(Over-The-Air) Updates
- 4G,Wi-Fi, Bluetooth, Ethernet Connectivity
Smart Display for Charging Insights
Products Features & Benefits
- Every Electric Vehicle
- Charge Anywhere
- Load Smart Power
- Custom Plans
- Charge securely
Products Comparison
What’s in the Box

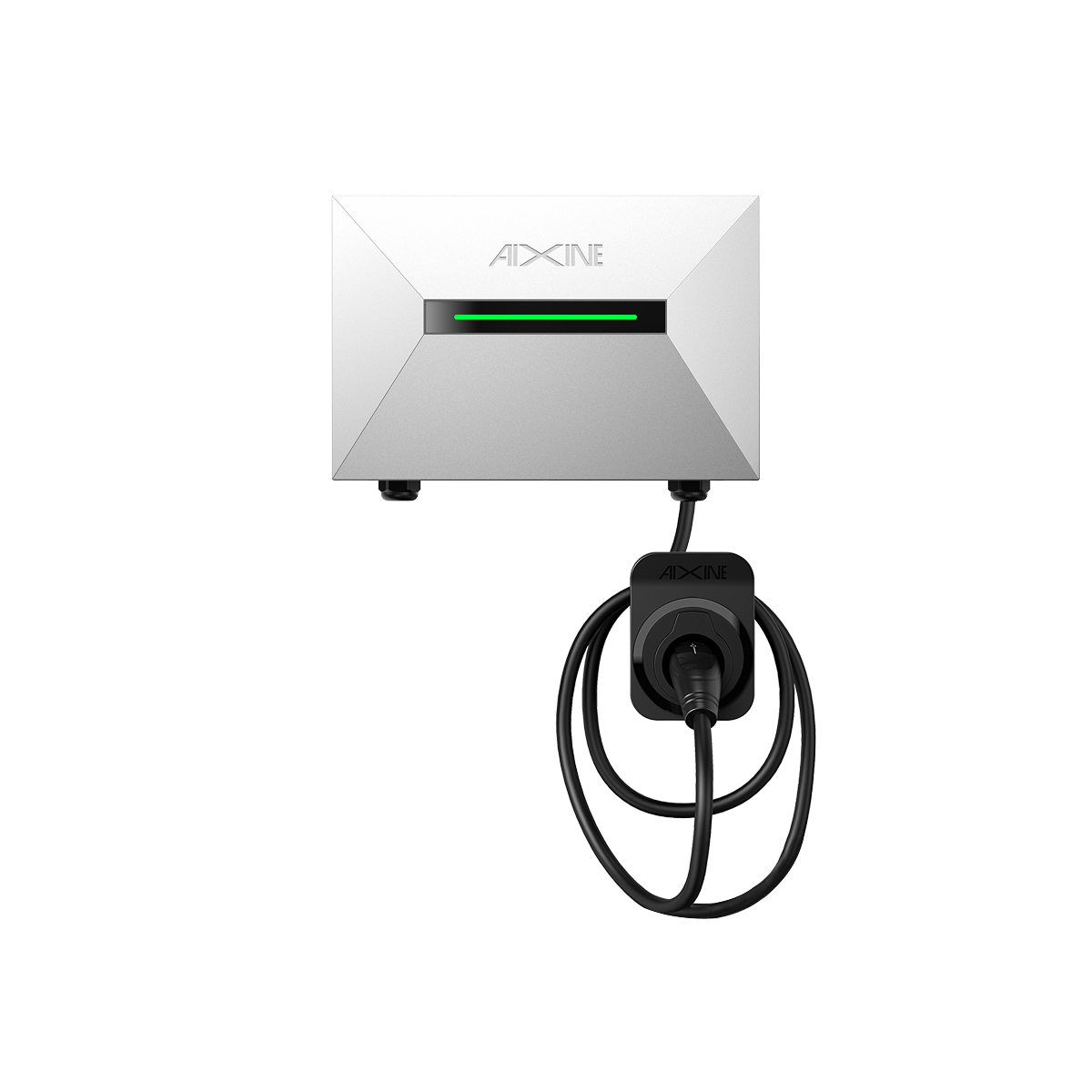

Charging Station

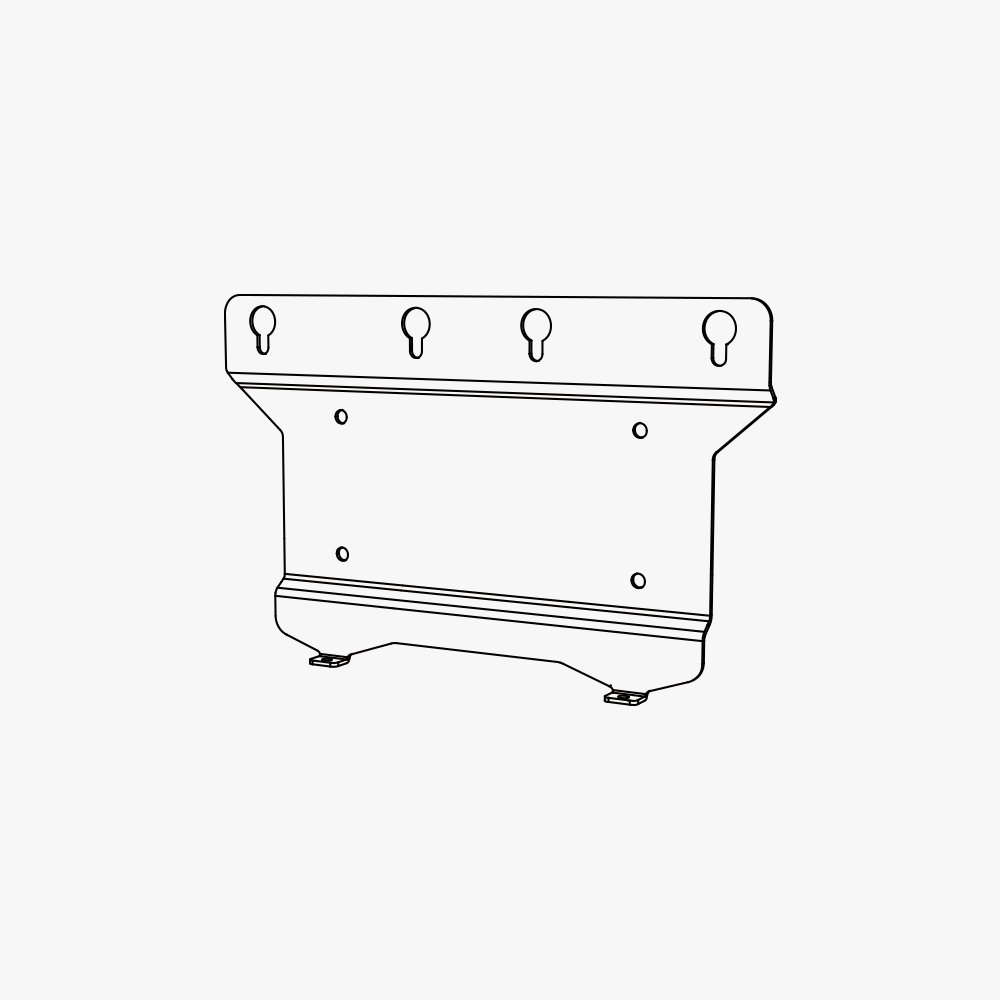

Wall Dock

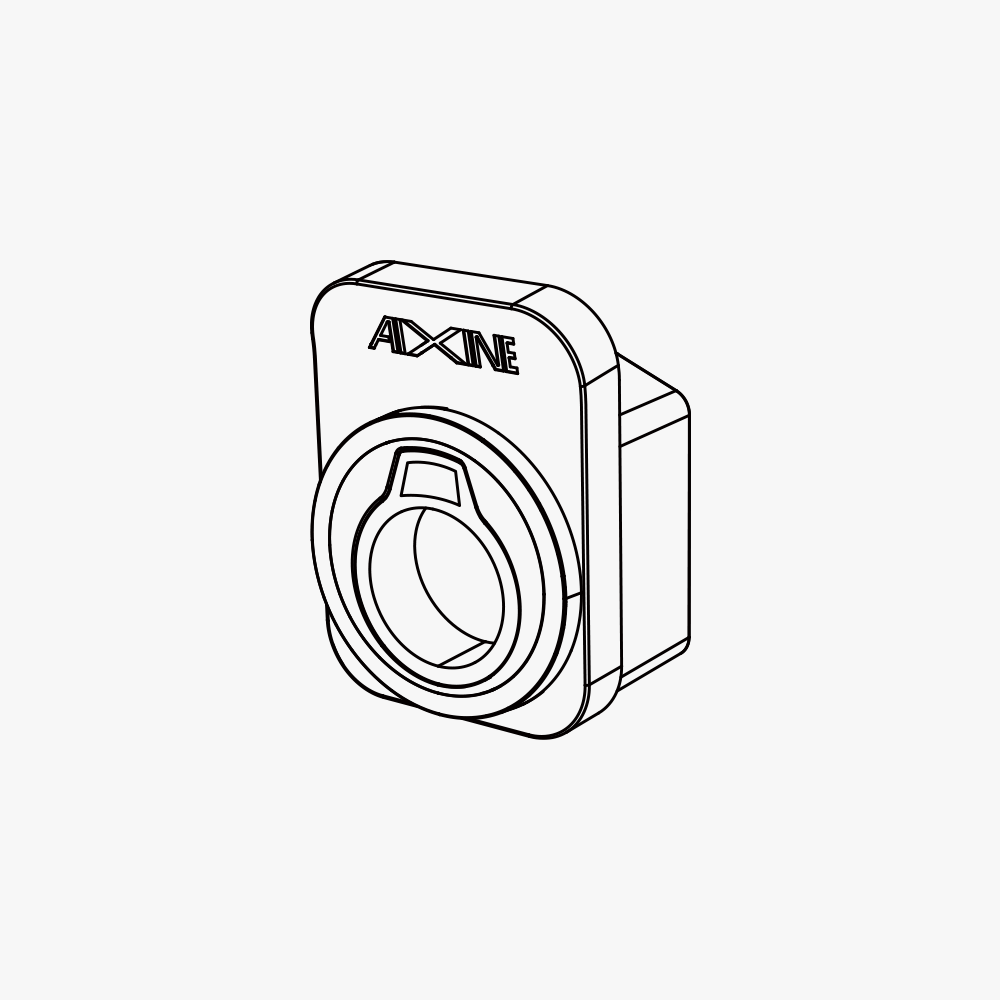

Holster

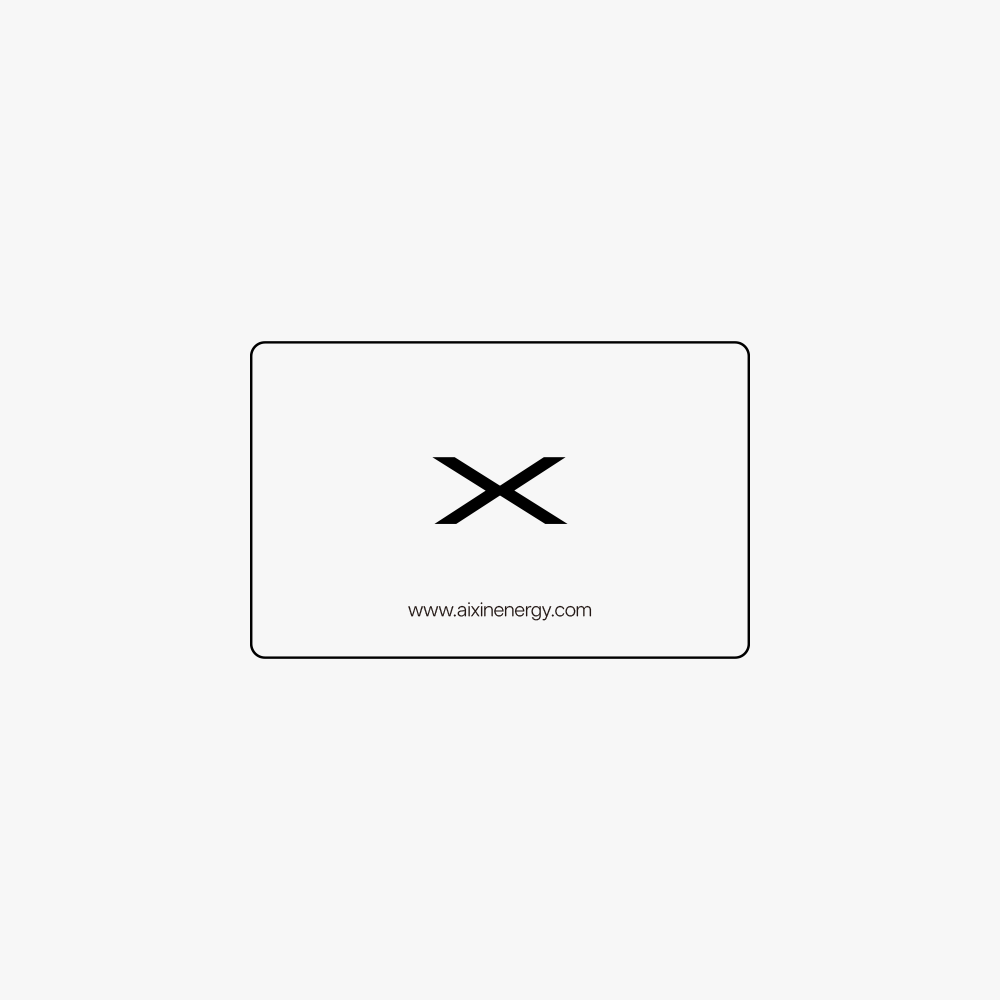

RFID Card

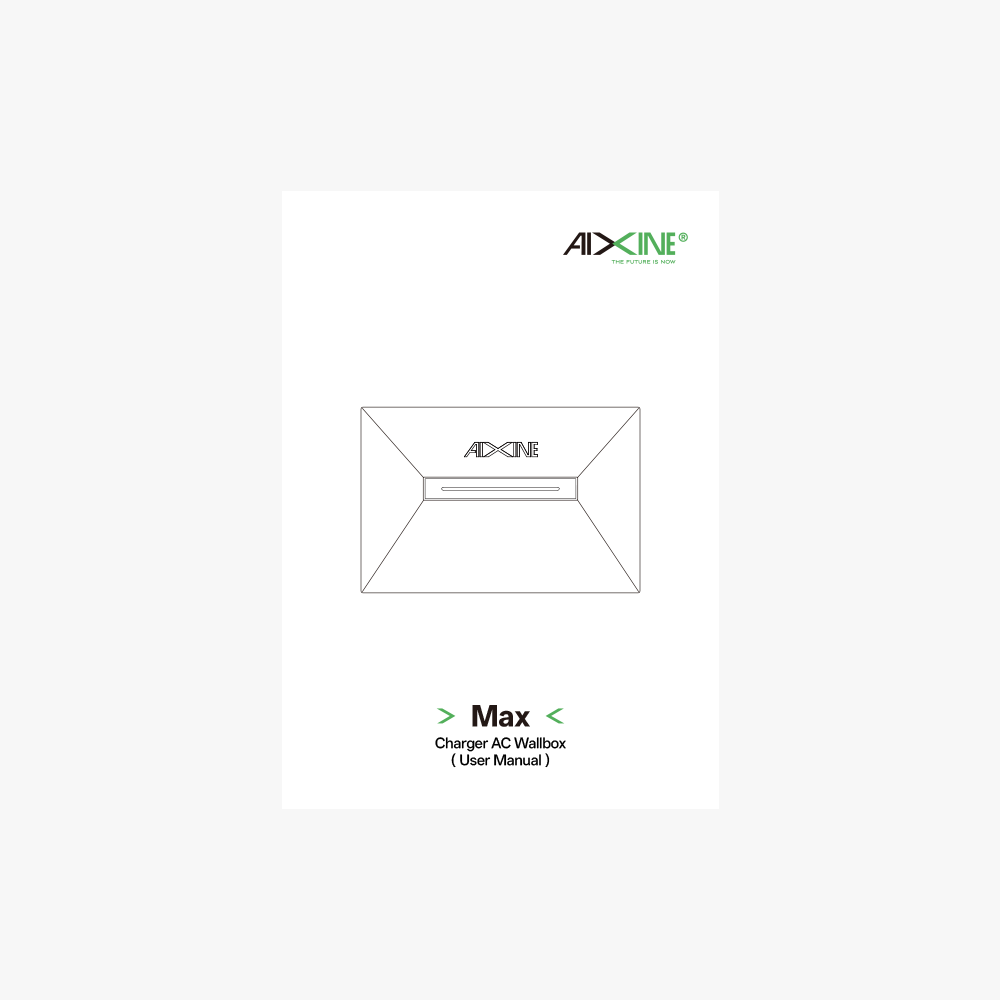

RFID Card

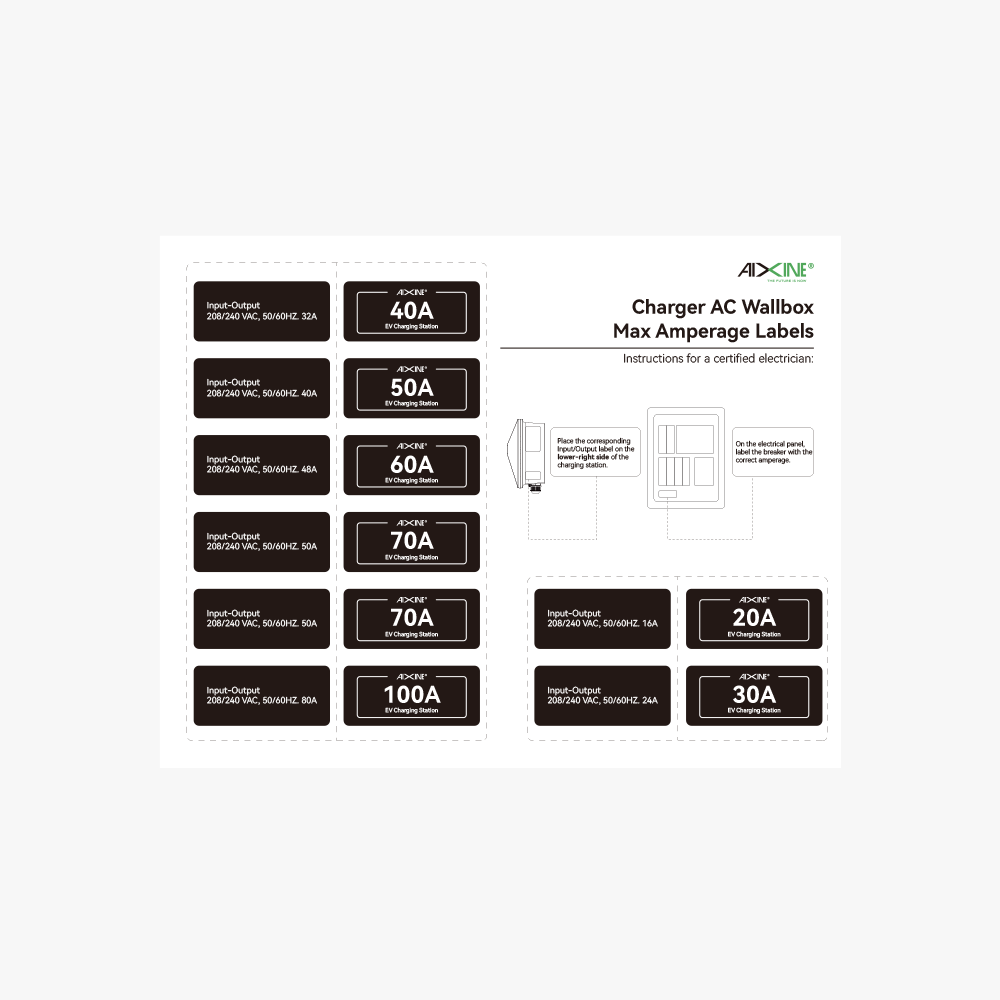

Amperage Labels

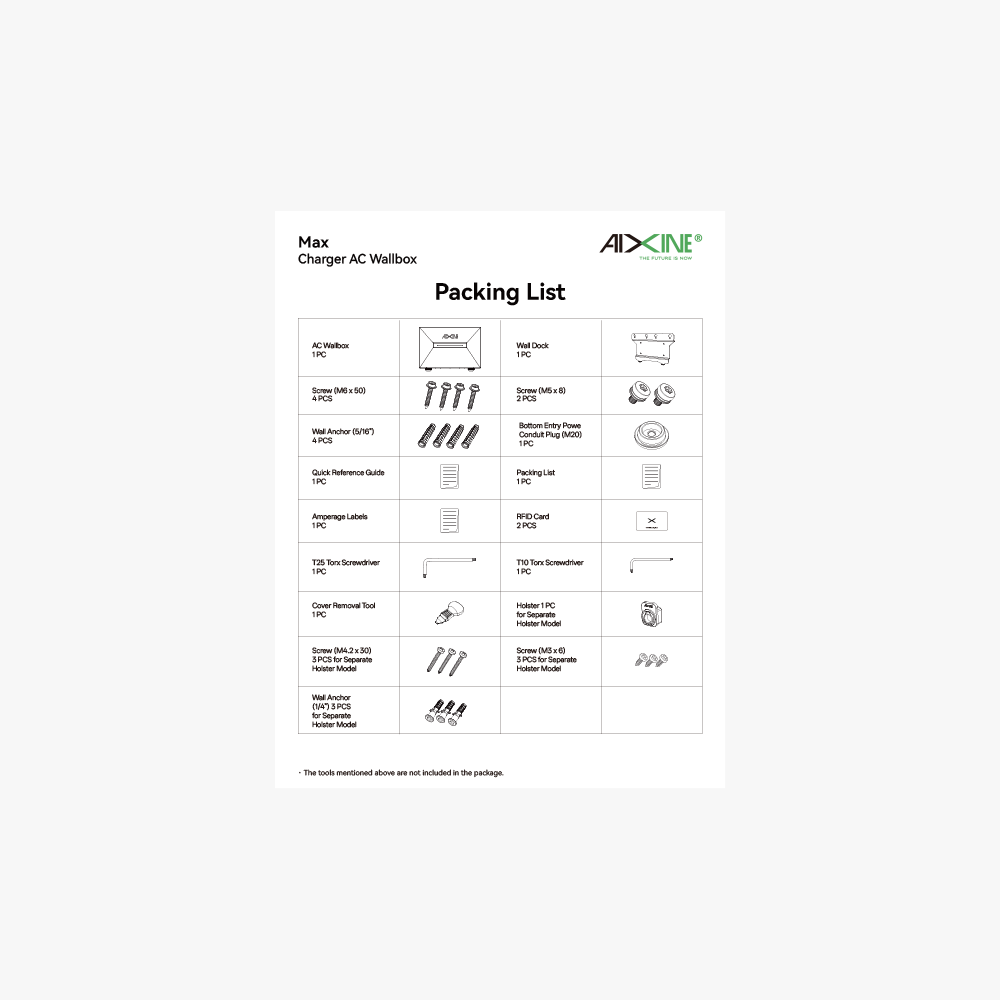

Packing List

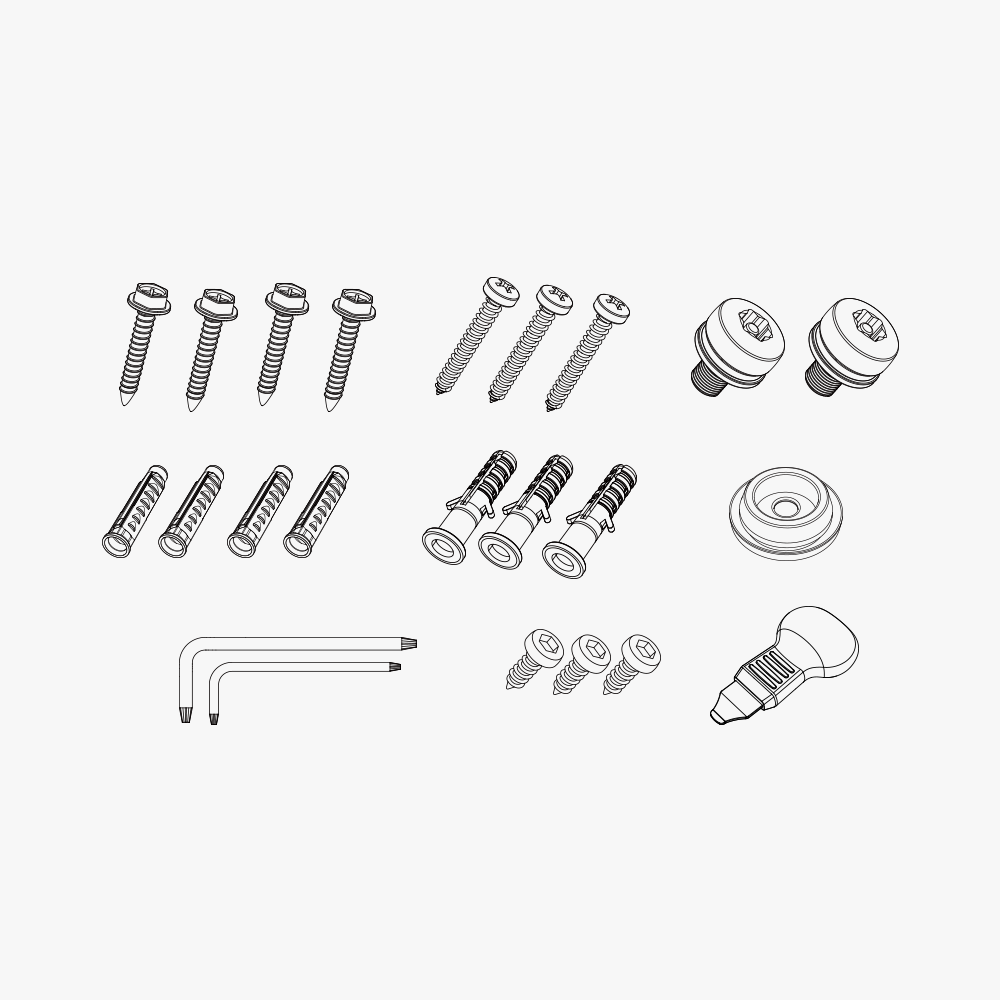

Accessories
Specifications
AC Power Output Rating
• Maximum 9.6kW (240 VAC @ 40 A model)
• Maximum 12kW (240 VAC @ 50 A model)
• Maximum 19.2kW (240 VAC @ 80 A model)
AC Power Input Rating
208/240 VAC, 60 Hz, single phase @ 40 A,
50 A , 80 A
Circuit Breaker Options (A)
40 A, 50 A, 80 A
(must be sized at 125% of the maximum load,
e.g., 50 A breaker for 40 A output)
Connectivity
• Bluetooth
• Wi-Fi (2.4G, 802.11 b/g/n)
• Ethernet (For commercial use only)
• RS485
Operating Temperature
-40 to 131 °F (-40 to 55 °C)
Storage Temperature
-40 to 185 °F (-40 to 85°C)
Weight
Net Weight: 12.3-17 lbs. (5.6-7.7 kg)
Gross Weight: 15.6-20.3 lbs. (7.1-9.2 kg)
Certification
FCC/cETLus/ENERGY STAR
Safety and Compliance
NEC Article 625 and UL 991, UL 2594, UL2231-1,
UL2231-2, UL 1998, CSA C22.1
Input Cord
• NEMA 6-50
• NEMA 14-50
• Hardwired
Model
• MAX-US-AC10N-6H • MAX-US-AC10J-6H
• MAX-US-AC10N-14H • MAX-US-AC10J-14H
• MAX-US-AC12N-H • MAX-US-AC12J-H
• MAX-US-AC20N-H • MAX-US-AC20J-H
