Name: Pro-X Charger
SKU: 5029
Availability: InStock

Pro-X Charger

Price range: $269.99 through $399.99

Key Features

cETLus/FCC/cULus
UL94-V0 Retardant Enclosure material

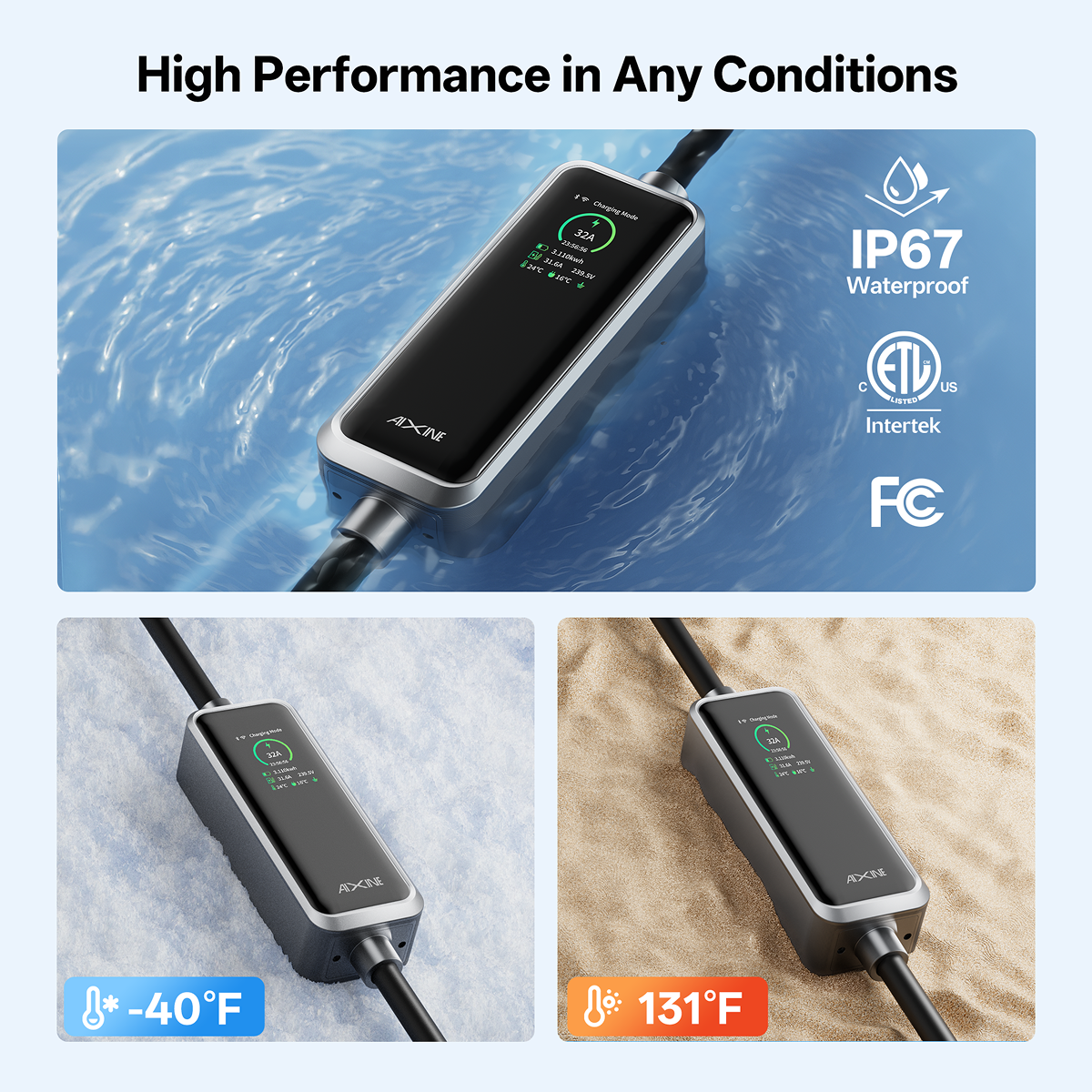

TYPE 4 (IP67) Enclosure, -40℃~+55℃
Optional 32A/40A
OTA (Over-The-Air) Updates

Color

Output
32Amp 40Amp
Type
JI772 NACS
Clear selection

Quantity

- +

Buy with shop More payment options

Buy Now on

SKU: N/A Category: Products

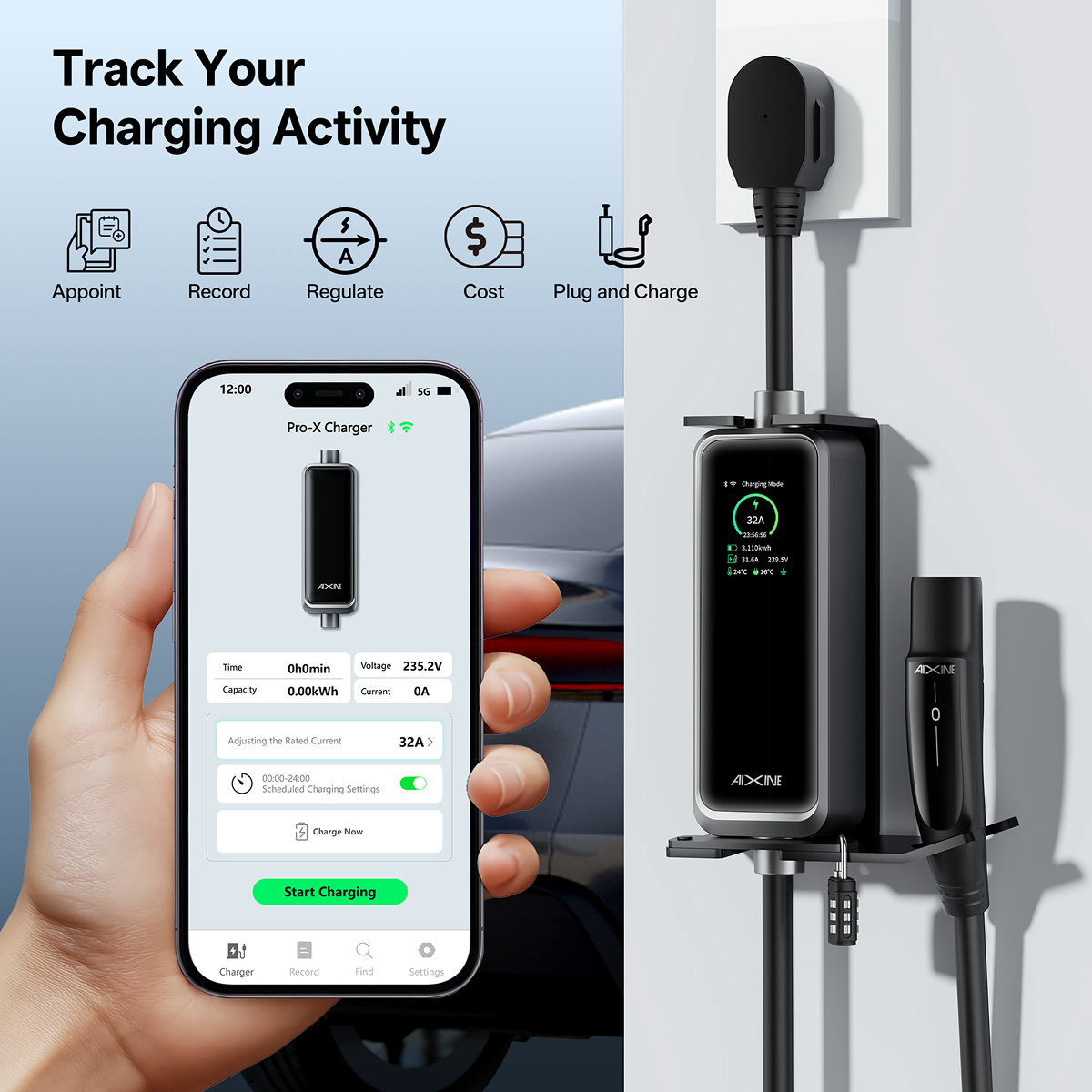

Smart Display for Charging Insights

Products Features & Benefits

Extemded Reach
Home & Travel
Protection System
MAX Savings
Charge securely

Products Comparison

What’s in the Box

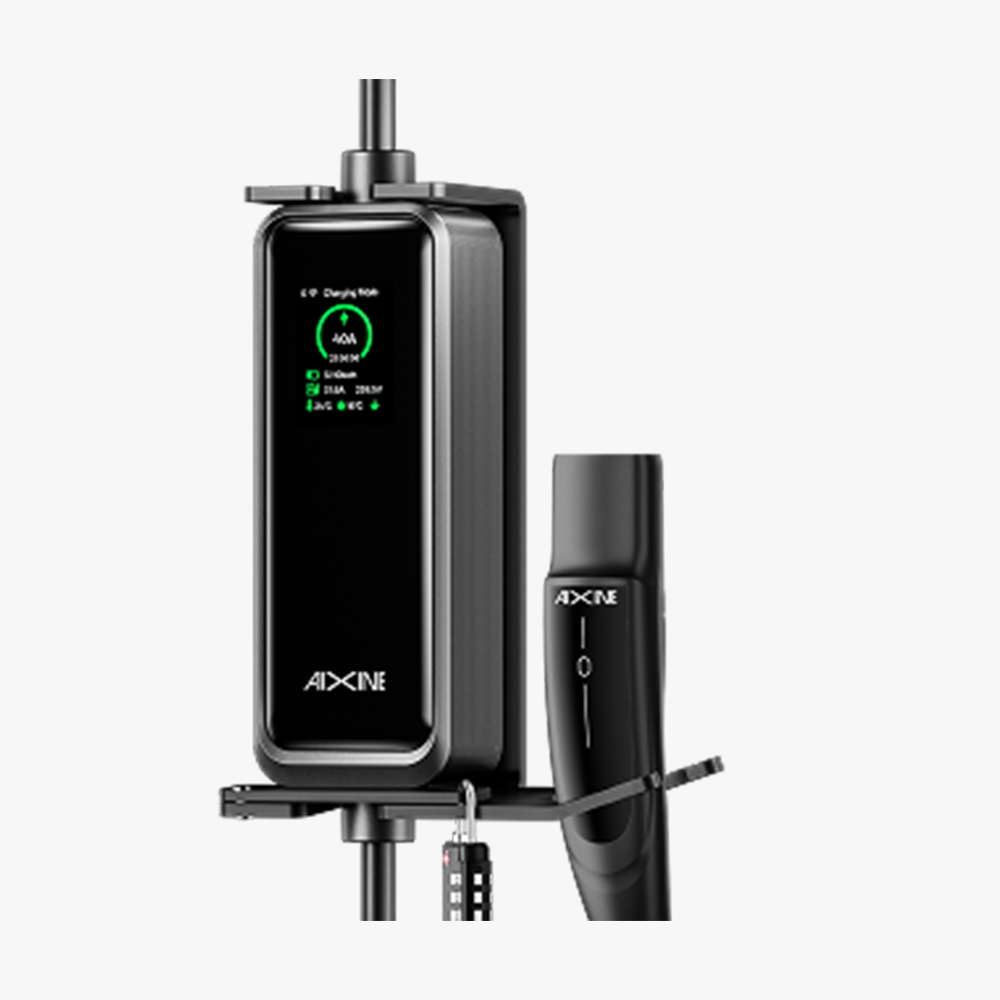

Charging Station

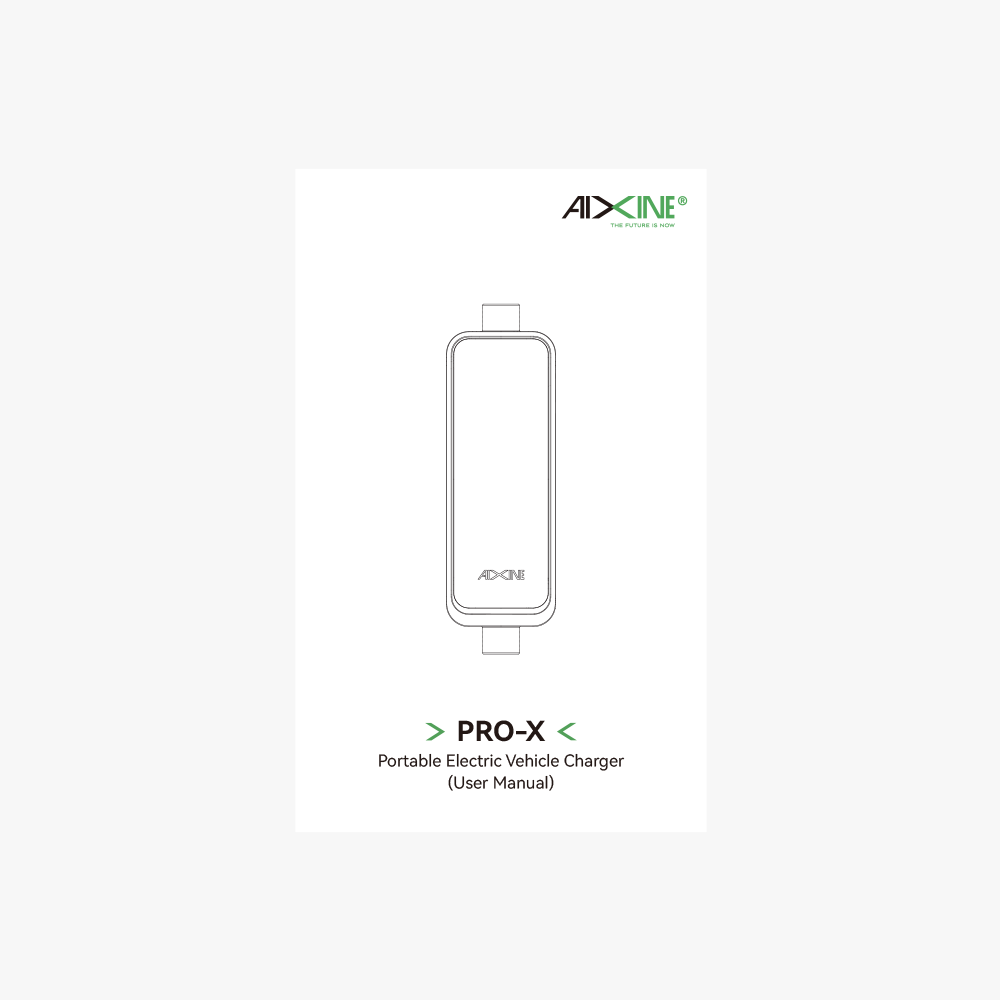

User Manual

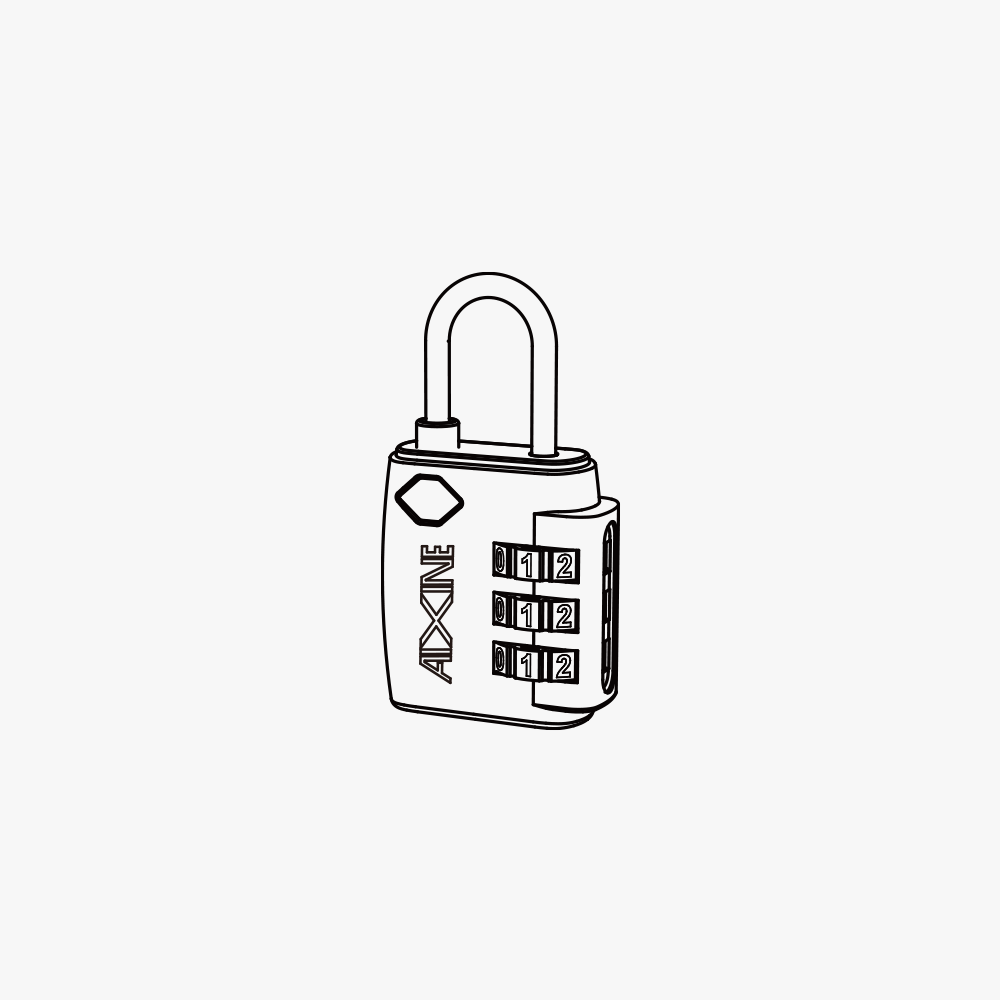

Coded Lock

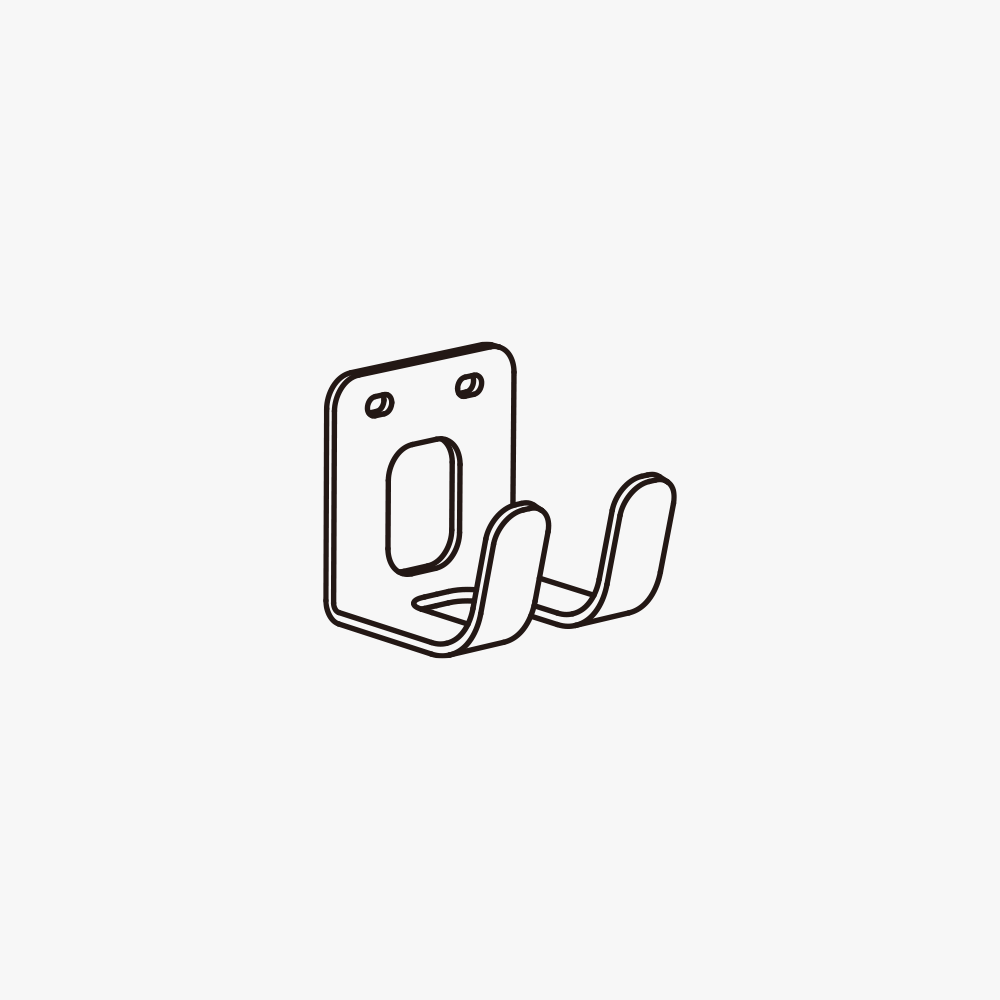

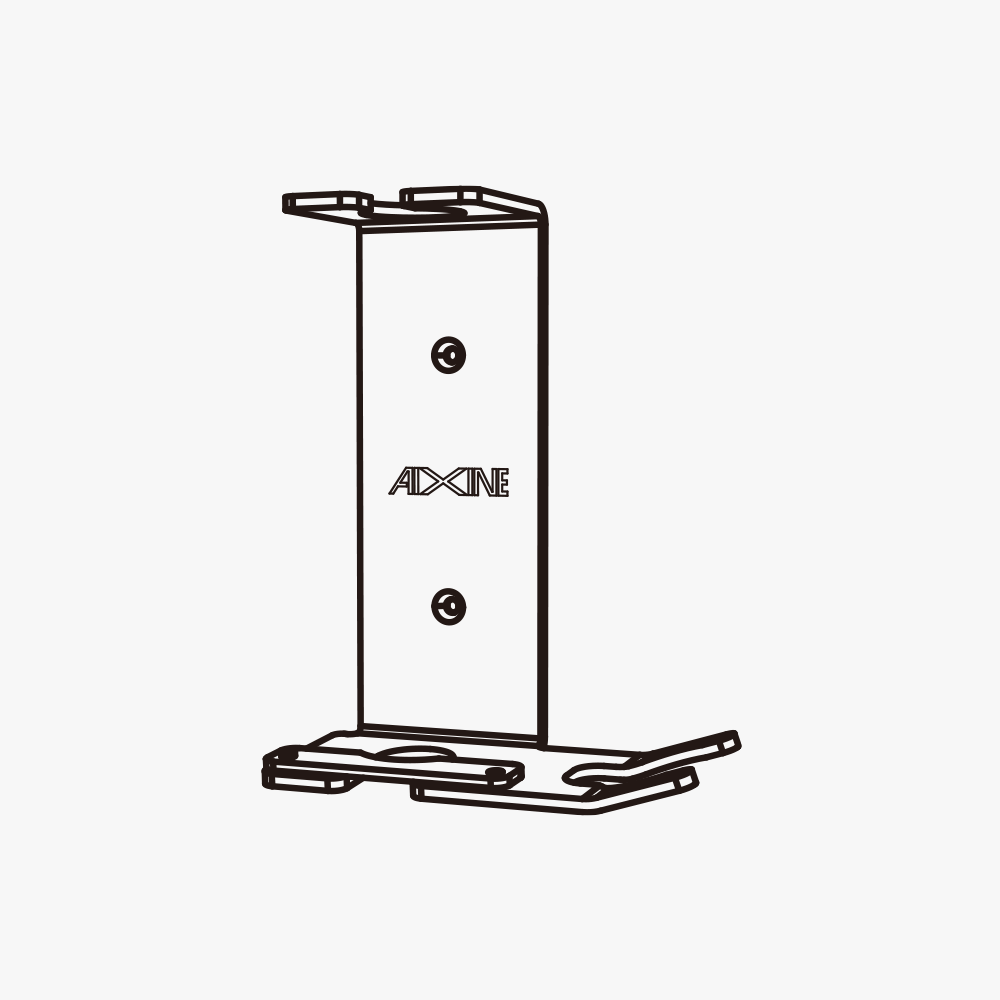

Cable Holder

User Manual

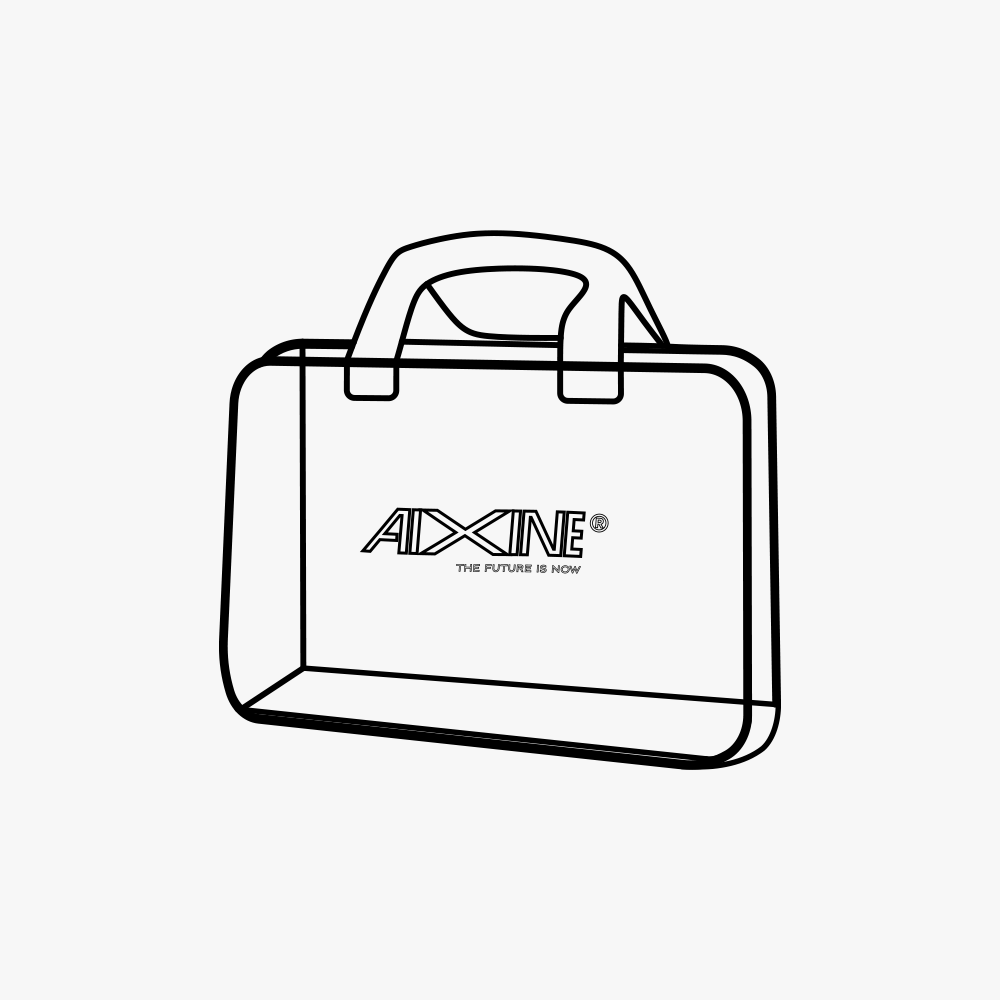

Storage Bag

Specifications

AC Power Output Rating

• Maximum 9.6kW (240 VAC @ 40 A model)
• Maximum 12kW (240 VAC @ 50 A model)
• Maximum 19.2kW (240 VAC @ 80 A model)

AC Power Input Rating

208/240 VAC, 60 Hz, single phase @ 16 A, 24 A,
32 A, 40 A, 48 A, 50 A , 80 A

Circuit Breaker Options (A)

20 A, 30 A 40 A, 50 A, 60 A, 70 A, 100 A
(must be sized at 125% of the maximum load,
e.g., 50 A breaker for 40 A output)

Connectivity

• Bluetooth
• Wi-Fi (2.4G, 802.11 b/g/n)
• 4G
• Ethernet (For commercial use only)
• RS485

Operating Temperature

-40 to 131 °F (-40 to 55 °C)

Storage Temperature

-40 to 185 °F (-40 to 85°C)

Weight

Hardwired model: about 11.5-16.1 lbs. (5.2-7.3 kg)
NEMA plug-in model: about 11.5 lbs. (5.2 kg)

Codes and Standards

FCC Part 15 Class B, Energy Star

Safety and Compliance

NEC Article 625 and UL 991, UL 2594, UL2231-1,
UL2231-2, UL 1998, CSA C22.1
Automatic reset feature is provided.
AVERTISSEMENT
Caractéristique de réarmement automatique incluse.

Input Cord

• NEMA 6-50
• NEMA 14-50
• Hardwired

Model

• UA-US-AC10N-6 • UA-US-AC10J-6
• UA-US-AC10N-14 • UA-US-AC10J-14
• UA-US-AC12N • UA-US-AC12J
• UA-US-AC20N • UA-US-AC20J
• UA-US-AC10N-6G • UA-US-AC10J-6G
• UA-US-AC10N-14G • UA-US-AC10J-14G
• UA-US-AC12N-G • UA-US-AC12J-G
• UA-US-AC20N-G • UA-US-AC20J-G
